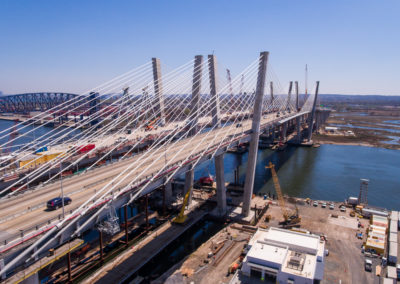

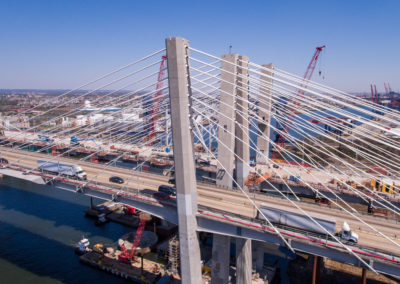

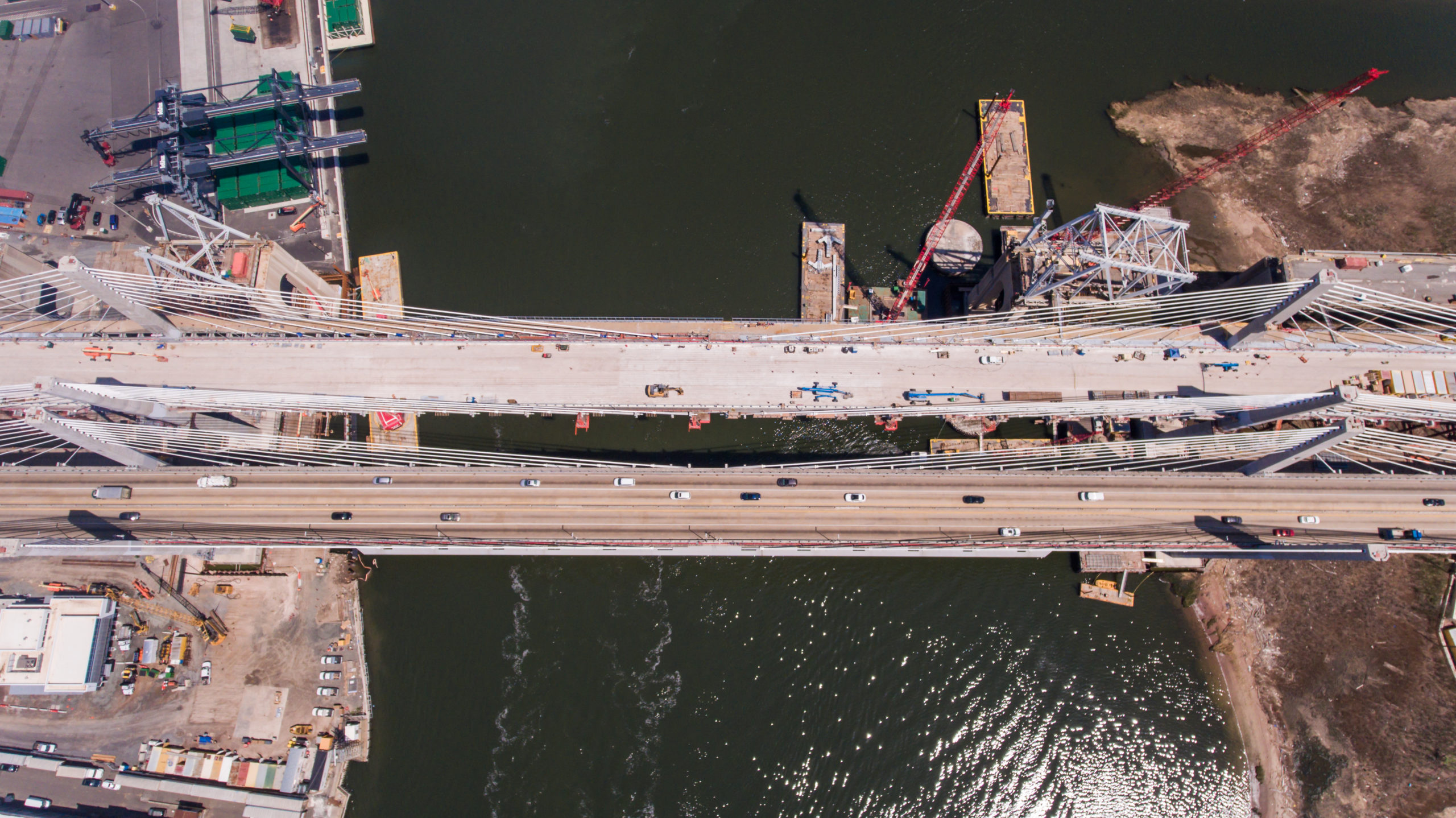

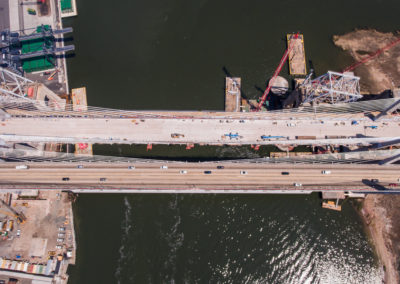

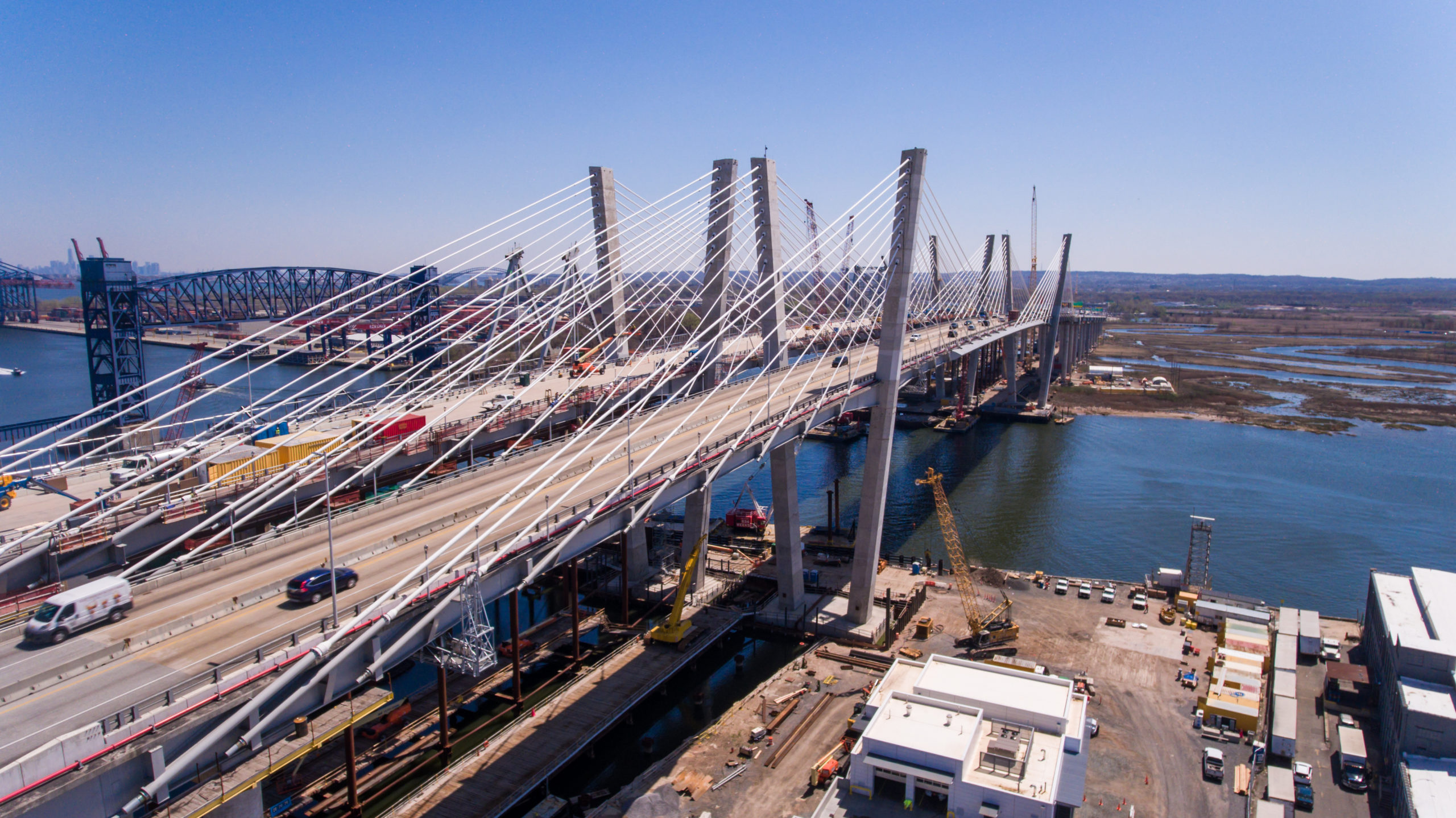

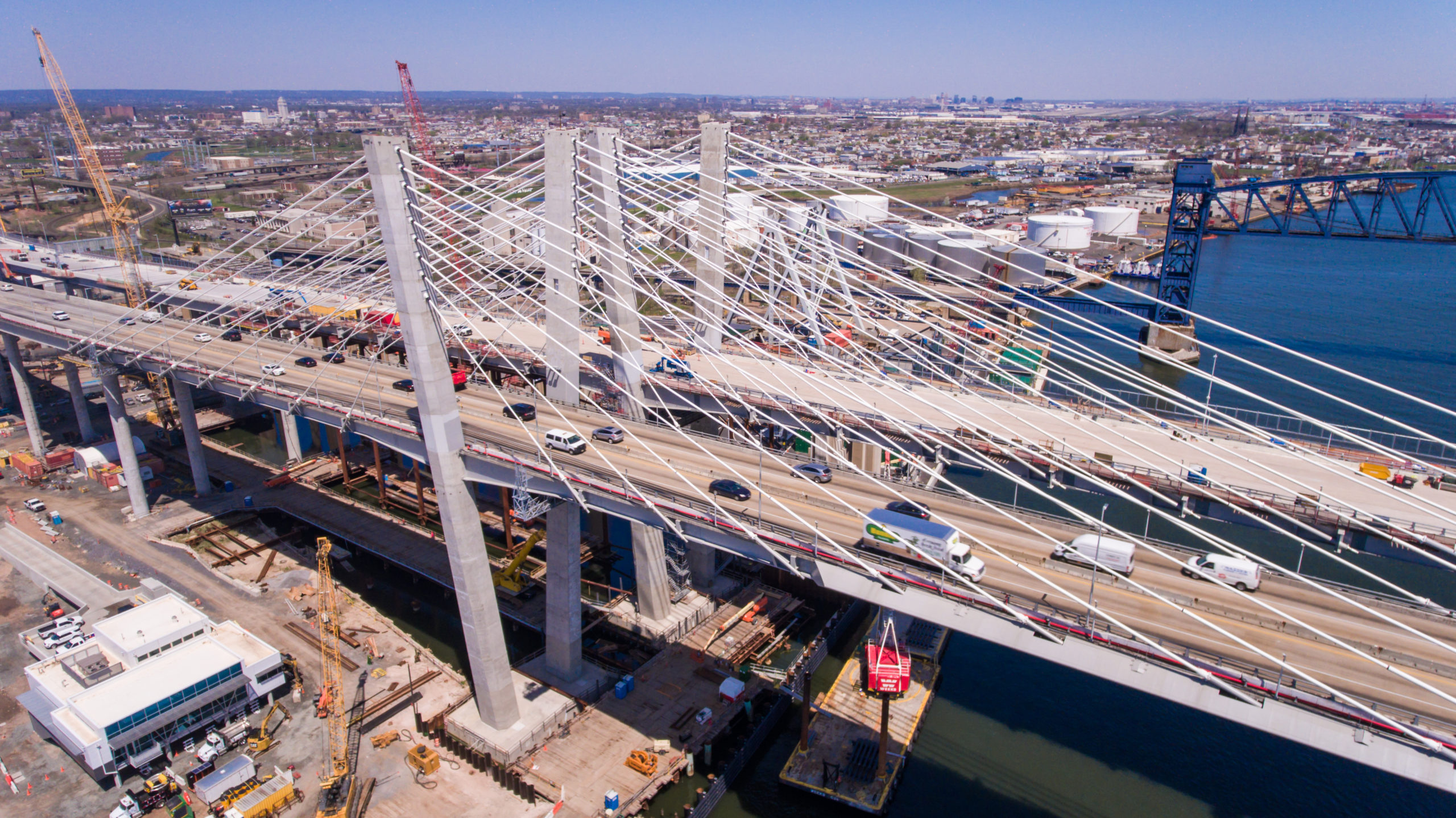

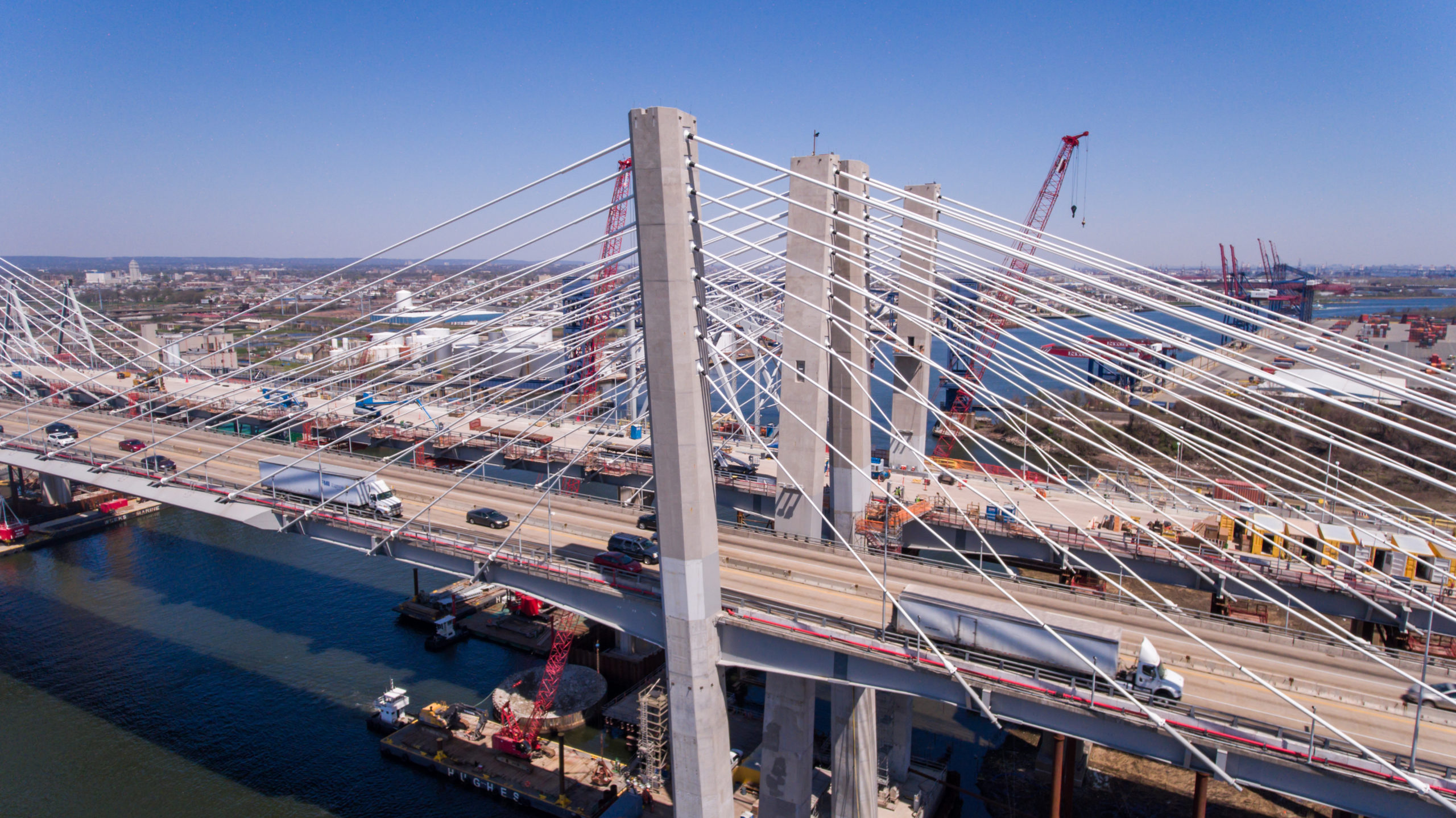

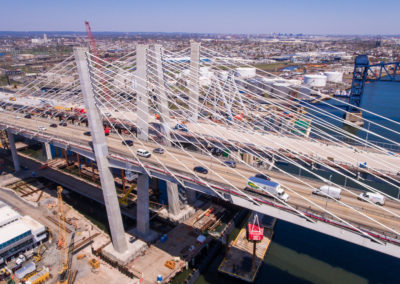

Goethals Bridge
The Kwik Bond Polymer PPC 1121 Overlay was placed on the Goethals Bridge when it was brand new as part of a P3 Proposal with a 40-year bridge maintenance concession.

Location:

Staten Island, NY

Owner:

Port Authority of New York and New Jersey

Project Completion:

2018

Project Details

ENR New York’s 2018 Bridge Project of the Year features a Polyester Polymer Concrete (PPC) overlay on the cable-stayed precast panel deck to deliver a 100-year design service life. The P3 team operating a DBFOM contract with a 40-year concession selected PPC during the design process in place of the Latex Modified Concrete (LMC) overlay originally specified.

FACT:

2017

2018

Project Solution

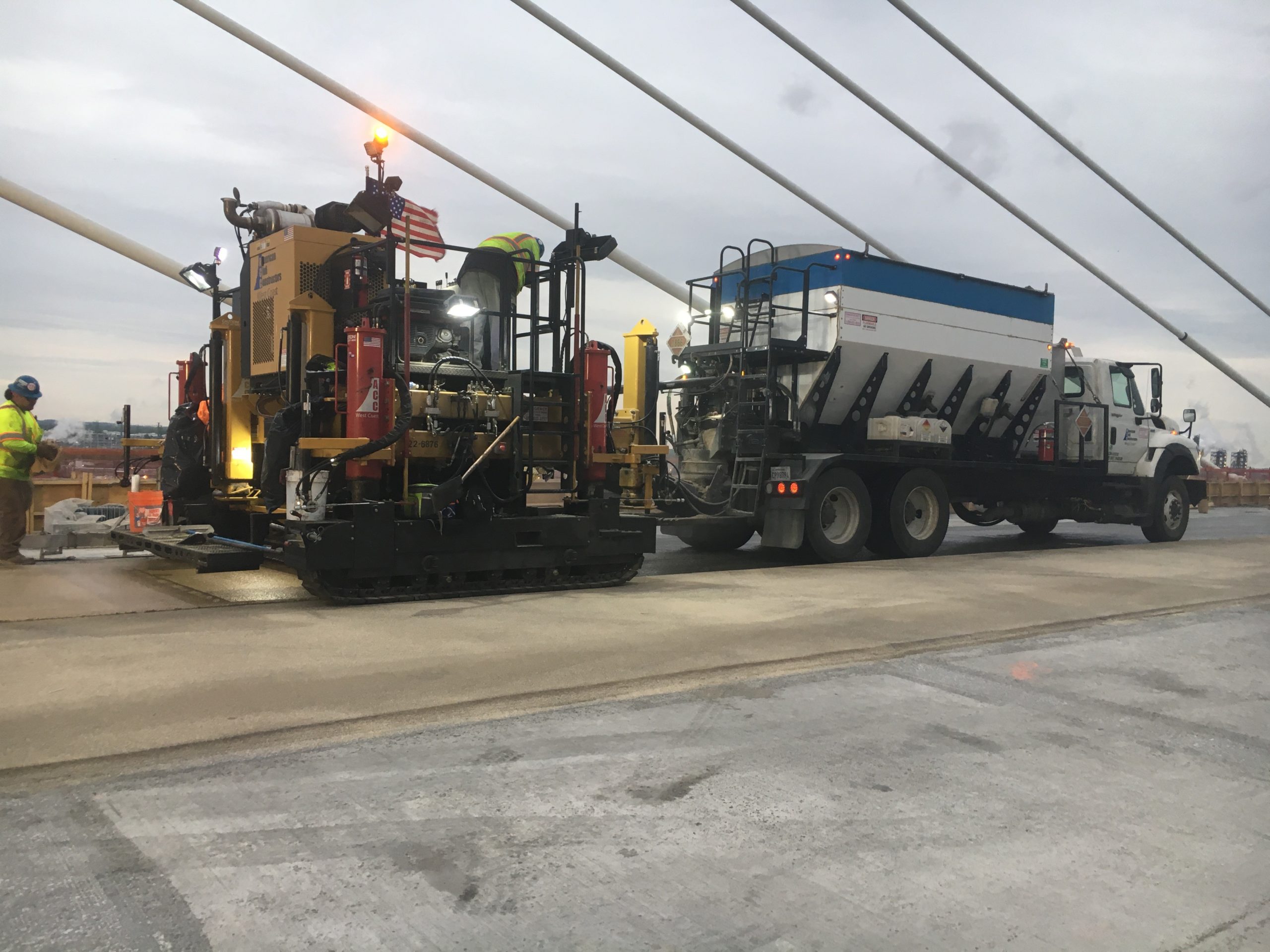

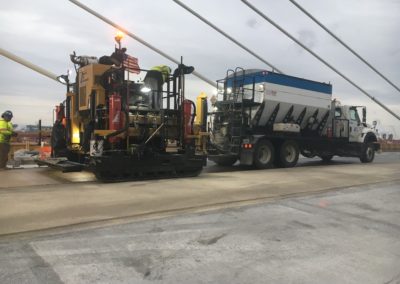

On projects like the Goethals bridge, PPC is faster and simpler to install than LMC. Our High Molecular Weight Methacrylate (HMWM) primer, a critical component to all our bridge preservation systems, works to adhere the PPC overlay soundly to the shot blasted precast panel deck without the need for the mechanical interlock of a roughened surface typically required for modified cementitious concrete overlays to achieve true composite action. The PPC overlay on the Goethals Bridge was finished with a saw-cut grooved texture days after placement by slip-form pavers and volumetric trucks.
